XDB101-5 Flush Diaphragm Ceramic Pressure Sensor Yerekana Ishusho

XDB101-5 Flush Diaphragm Ceramic Umuvuduko Wumuvuduko

Ibisobanuro bigufi:

Urutonde rwa XDB101-5 flush diaphragm ceramic yumuvuduko wa sensor nigikoresho cyumuvuduko wumuvuduko wanyuma muri XIDIBEI, hamwe numuvuduko wumuvuduko wa bar 10, 20 bar, 30 bar, 40 bar, 50 bar.Ikozwe muri 96% Al₂O₃, kwemerera guhuza byimazeyo nibitangazamakuru byinshi bya acide na alkaline (usibye aside hydrofluoric) udakeneye ibikoresho byokwirinda byonyine, bizigama amafaranga yo gupakira.Urufatiro rwashizweho rukoreshwa kugirango habeho ituze ridasanzwe mugihe cyimikorere ya sensor.

Ohereza imeri kuri twe

Ibicuruzwa birambuye

Ibicuruzwa

Ibiranga

Shingiro shingiro kugirango umenye neza ituze mugihe cyo kwishyiriraho.

● Ingano: 12 * 12 mm.

Price Igiciro cyiza & ibisubizo byubukungu.

● Gukoresha ubushyuhe buringaniye -40 kugeza + 135 ℃.

Menyesha mu buryo butaziguye uburyo bwapimwe, burwanya aside isanzwe (usibye aside fluor).

Ibisanzwe

Control Igenzura ry'inganda.

Gapima ubukonje bwa firigo.

● Amazi, gaze cyangwa gupima ikirere.

inganda zinganda zipima amazi ya gaze na parike

Hindura ifoto yumukozi wubuvuzi wumugore mukurinda mask ikora kuri monitor ya mashini.Umugabo aryamye muburiri bwibitaro inyuma

Ibipimo bya tekiniki

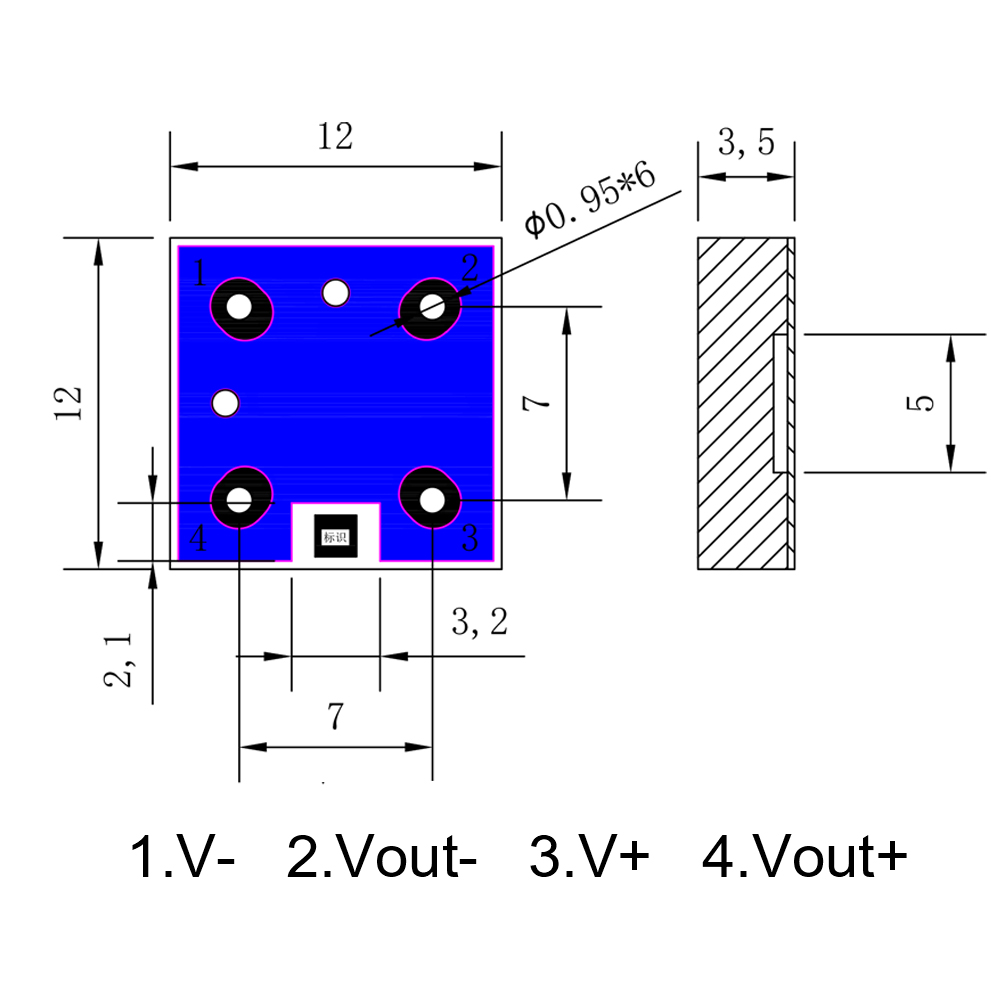

Urwego rw'ingutu	10, 20, 30, 40, 50 bar	Ingano mm(diaphragm * uburebure)	12 * 12 mm
Icyitegererezo cyibicuruzwa	XDB101-5	Tanga voltage	0-30 VDC (max)
Ikiraro cyumuhanda	10 KQ ± 30%	Ibisohoka byuzuye	≥2 mV / V.
Ubushyuhe bwo gukora	-40 ~ + 135 ℃	Ubushyuhe bwo kubika	-50 ~ + 150 ℃
Ubushyuhe bw'indishyi	-20 ~ 80 ℃	Ubushyuhe bukabije(zeru & sensitivite)	≤ ± 0.03% FS / ℃
Iterambere rirambye	≤ ± 0.2% FS / umwaka	Gusubiramo	≤ ± 0.2% FS
Zeru	≤ ± 0.2 mV / V.	Kurwanya insulation	≥2 KV
Zeru-point-maremare maremare @ 20 ° C.	± 0,25% FS	Ubushuhe bugereranije	0 ~ 99%
Guhuza neza nibikoresho byamazi	96% Al₂O₃	Muri rusange(umurongo + hystereze)	≤ ± 0.3% FS
Umuvuduko ukabije	Inshuro 2 inshuro (ukurikije intera)	Umuvuduko ukabije	150% FS
Uburemere bwa Sensor	12g

Kwinjiza & Inama

Rukuruzi rwumva neza ubuhehere, dore bimwe mubyifuzo byo gushiraho.

Mbere yo gushiraho, shyira sensor mu ziko ryumye hamwe na 85 ° C byibuze muminota 30.

Mugihe cyo gushiraho, menya neza ko ubushuhe bwibidukikije buguma munsi ya 50%.

Nyuma yo gushiraho, ingamba zikwiye zo gufunga zigomba gufatwa kugirango zirinde sensor.

Module nigicuruzwa cyahinduwe, amakosa rero byanze bikunze azabaho mugihe cyo kwishyiriraho.Mbere yo gukoresha, ikosa ryatewe nibintu byo hanze (imiterere yo kwishyiriraho, ibindi bikoresho, nibindi) bigomba kugabanywa bishoboka.
